| 單位（Dimension）:mm | |||||||||||||||

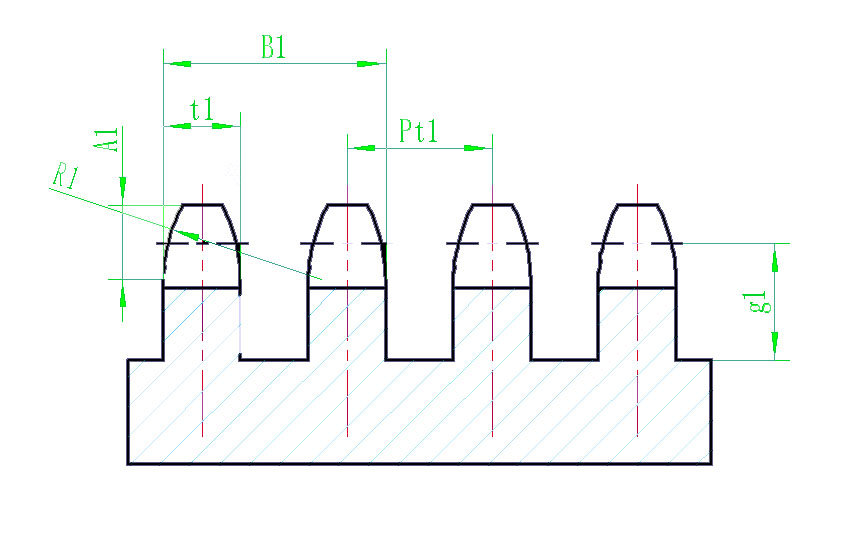

| 鏈輪號 Sprocket NO. | 節(jié)距 Pitchp | 滾子直徑 Roller Dia.Φ | g | 倒角高 Height of Chamfer A | 倒角寬 Width of Chamfer C | 倒角半徑 Radius of Chamfer R | 排距 Trans Verse Pitch of Strands Pt. | 單排 Single | 2排 3排 Double Triple | 4排 Quadruple | |||||
| 齒厚 Teeth Thick-Ness t1 | 齒厚 Teeth Thick-Ness t2、t3 | 齒幅 Teeth Width | 齒厚 Teeth Thick-Ness t4 | 齒幅 Teeth Width | |||||||||||
| B2 | B3 | B2 | B3 | B4 | |||||||||||
| 04 | 6 | 4 | 4.1 | 3 | 0.6 | 6 | 2.6 | 2.5 | 2.4 | ||||||
| 05 | 8 | 5 | 5.3 | 4 | 0.8 | 8 | 5.6 | 2.8 | 2.7 | 8.3 | 13.9 | 2.6 | 8.2 | 13.8 | 19.4 |
| 06 | 9.525 | 6.35 | 6.2 | 4.8 | 1 | 10 | 10.2 | 5.3 | 5.2 | 15.4 | 25.6 | 5.0 | 12.2 | 25.4 | 35.6 |
| 08 | 12.70 | 8.51 | 8.4 | 6.4 | 1.3 | 13 | 13.9 | 7.2 | 7.0 | 21.0 | 34.9 | 6.8 | 20.7 | 34.6 | 48.5 |
| 10 | 15.875 | 10.16 | 10.2 | 7.9 | 1.6 | 16 | 16.6 | 9.1 | 9.0 | 25.6 | 42.2 | 9.0 | 25.6 | 42.2 | 58.8 |
| 12 | 19.05 | 12.07 | 11.2 | 9.5 | 2 | 19 | 19.5 | 11.1 | 10.8 | 30.4 | 49.9 | 10.9 | 30.4 | 49.9 | 69.4 |
| 16 | 25.40 | 15.88 | 14.6 | 12.7 | 2.5 | 26 | 31.9 | 16.2 | 15.8 | 47.7 | 79.6 | 15.8 | 47.7 | 79.6 | 111.5 |
| 20 | 31.75 | 19.05 | 18 | 15.9 | 3.5 | 32 | 36.5 | 18.5 | 18.2 | 54.6 | 91.0 | 18.2 | 54.6 | 91.0 | 127.5 |
| 24 | 38.10 | 25.4 | 22.4 | 19.1 | 4 | 38 | 48.4 | 24.1 | 23.6 | 72.0 | 120.3 | 23.6 | 72.0 | 120.3 | 168.7 |
| 28 | 44.45 | 27.94 | 24.9 | 22.2 | 5 | 44 | 59.6 | 29.4 | 28.8 | 88.4 | 148.0 | 28.8 | 88.4 | 148.0 | 207.6 |
| 32 | 50.80 | 29.21 | 28.2 | 25.4 | 6 | 51 | 58.6 | 29.4 | 28.8 | 87.4 | 146.0 | 28.8 | 87.4 | 146.0 | 204.6 |
| 40 | 63.50 | 39.37 | 34.9 | 31.8 | 8 | 64 | 72.3 | 36.2 | 35.4 | 107.7 | 180.0 | 35.4 | 107.7 | 180.0 | 252.3 |
| 48 | 76.20 | 48.26 | 41.8 | 38.1 | 9 | 76 | 91.2 | 43.3 | 42.5 | 133.7 | 224.9 | 42.5 | 133.7 | 224.9 | 316.1 |
| 56 | 88.90 | 53.98 | 50.2 | 44.5 | 11 | 89 | 106.6 | 80.7 | 49.6 | 156.2 | 262.8 | 49.6 | 156.2 | 262.8 | 369.4 |
| 64 | 101.60 | 63.5 | 57.8 | 50.8 | 13 | 102 | 119.9 | 57.9 | 56.7 | 176.6 | 296.5 | 56.7 | 176.6 | 296.5 | 416.4 |
| 72 | 114.30 | 72.39 | 66.0 | 57.2 | 15 | 114 | 136.3 | 65.2 | 63.8 | 200.1 | 336.4 | 63.8 | 200.1 | 336.4 | 472.7 |
